Product Description

Features

• Wifi remote control on PC or Android phone
• 4 separate channels,timing and dimming
• 100% modular design, zerocost maintenance
• LED 90/120 mix degree optic lens, acrylic panel to provide high light transmittance
• Simulating Sunrise, Sunset, Moonlight, Storm, and Lunar Cycle, etc.
• 120W integrated COB chips and 10pcs 3w high power leds, providing high PAR performance
• Heat-tube cooling and PWM Smart fan to control speed and noise, optimized heat dissipation

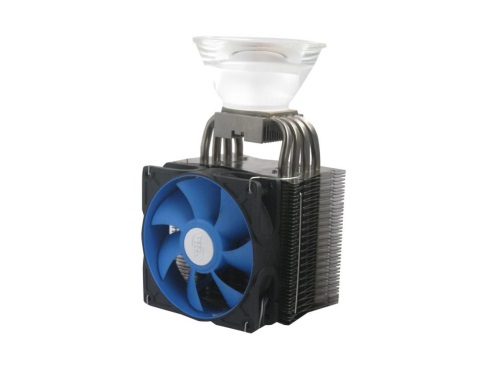

Heat Disspation

Hot-tube cooling and speed-controlled fan to dissipate,

40% cooler than HID lighting,no noise  cool the LEDs below 50 °C.

We apply PWM tech to control the fan, improving control of brightness,

and control of fan speed and noise. With self-monitoring function,

once the fan stops working, the LED brightness would darken to 20%

so as to protect the light

Main Specification

Actual power：150 watts

0.68 amps @ 220V; 1.36 amps @ 110V

Power Factor(PF): > 0.96

Frequency: 50/60Hz

AC Cable Length: 4ft

DC Cable Length: 4ft

AC Connector: IEC 320 Inlet

Universal Input Range: 100 to 240VAC / 50 to 60Hz

CE & ROHS

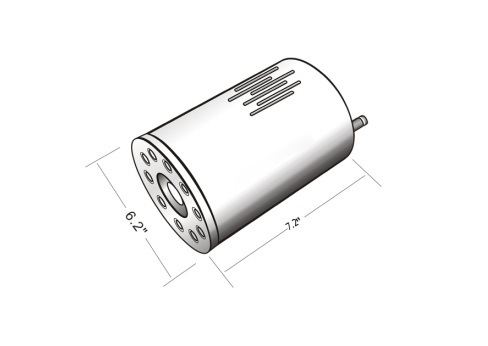

Dimensions

Length: 7.2 inches/183mm

Diameter: 6.2 inches/158mm

Weight: 8.8pounds/4.0kg

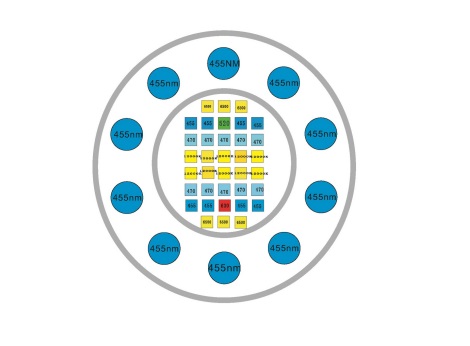

LEDs

10 x Blue LEDs run at 3W SemiLED

10 x Cool White LEDs run at 3W Bridglux

10 x Royal LEDs run at 3W SemiLED

8x UV LEDs run at 3W Edison

6 X 6500K LEDs run at 3W Bridgelux

1 x red LEDs run at 3w epistar

1 x green LEDs run at 3W epistar

Lifespan: 50000Hrs

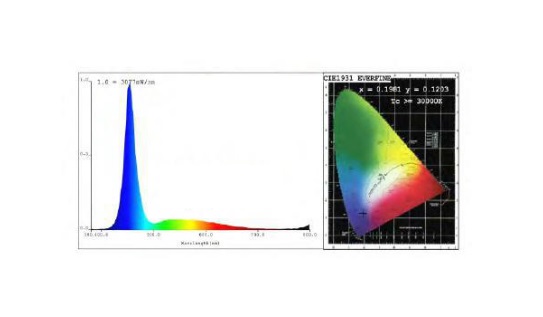

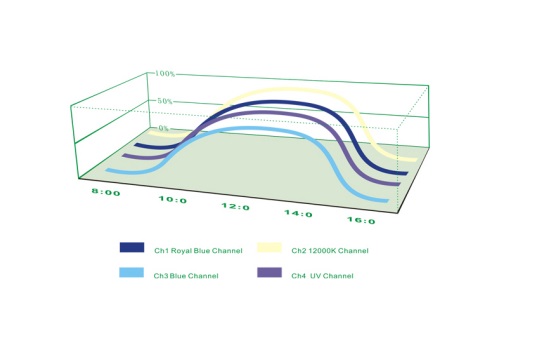

Spectrum

The Asta has 4 separate channels to control

the spectrum, 100% usable by coral growth.

Each channel has a separate dimmer and timer

to achieve a greater effect.,lumens 4500-5600Lm

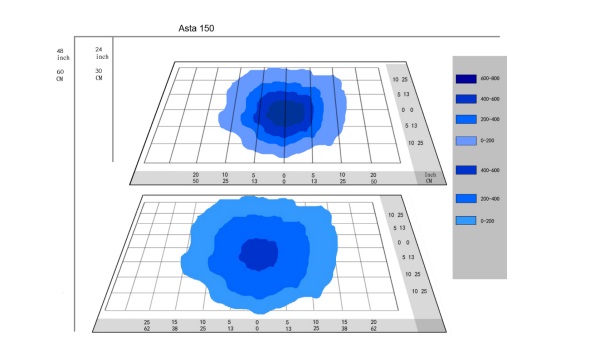

Intensity

We use full 3w high power Bridgelux chips, these

high intensity LEDs are combined with the use of

90/120 mix degree lens, providing high light

transmission levels. Giving amazing results!

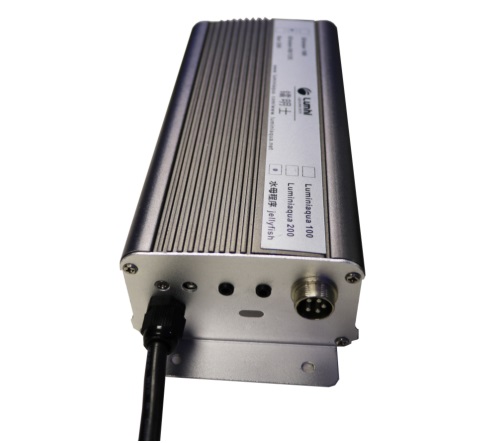

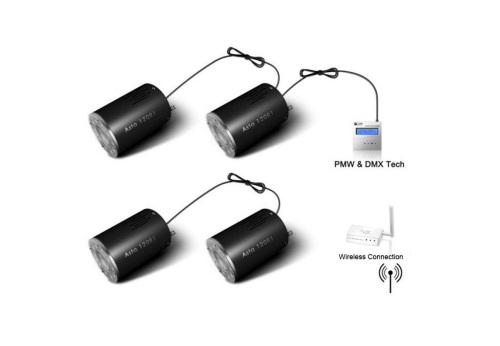

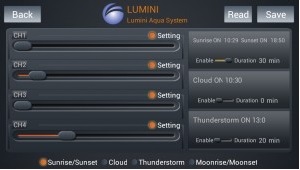

Wifi Intelligent Control

We use the newest and most popular technology DMX and PMW control, with a 2.4 GHz Wifi signal, enabling wifi remote control
on your computer or phone. Automatic, Manual, Moonlight, Thunderstorm mode, 4 separate adjustable channels, timing and dimming,
daisy chain is available. Our control is intelligent, letting your plant growth use automated parameters.

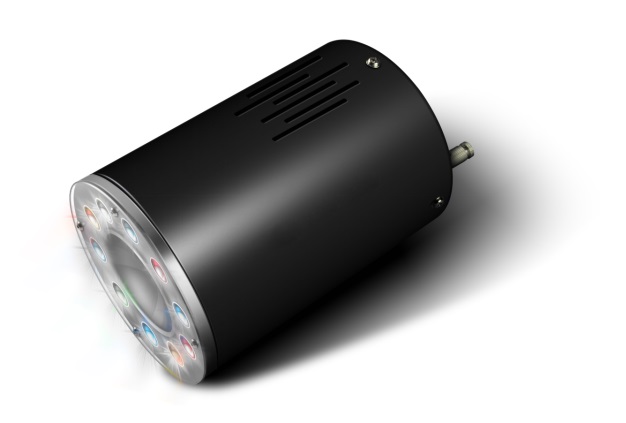

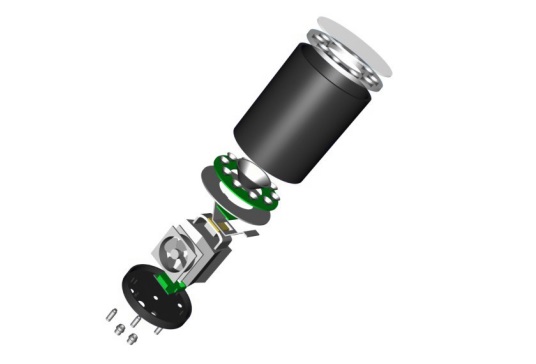

Upgradability

We know how important your investment is.

We’ve designed the Lumini Asta 120R1 to

be forward thinking, 100% modular built, and allow

to be upgraded as the technology progresses.

Like personal computers, LED technology is developing

rapidly. The Lumini Asta 120R1 is completely

Modular designed, allowing to be upgraded as desired.
